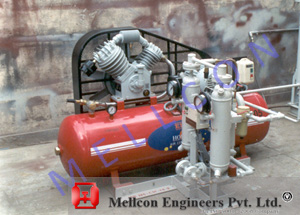

MELLCON offers packaged Dry Air Plant in which complete assembly
is mounted on a common skid. Assembly includes Air Compressor, After Cooler,
Air Receiver and Air Dryer. The system is ready to install type just requiring
power connection, water connection and air inlet/outlet connection. Packaged
Dry Air Plants are offered upto a capacity of 100CFM. The basic scheme of the
system is shown below:-
Air Compressor compresses the atmospheric air
thereby raising its temperature & humidity. This hot air is cooled in
Water Cooled After Cooler to a temperature of 400 C and in the
process moisture condenses & drained out. This air is stored in air
receiver and then passes through the Air Dryer where air is dried to a a
desired Dew Point. This fully dry air is sent for the pneumatic/process
application .
